Design

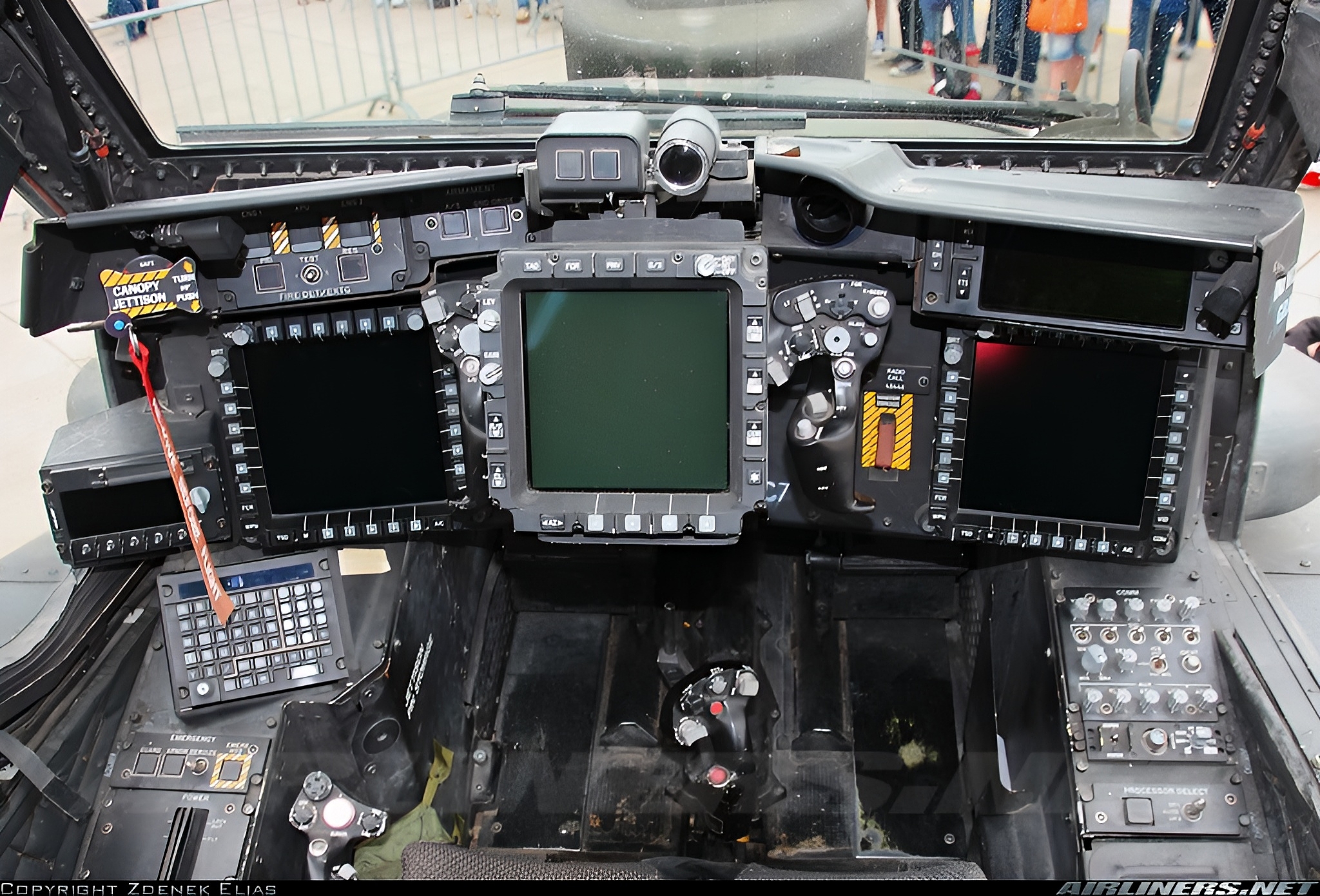

The cockpit has seats for two people: a captain and a co-pilot/gunner. Utilised for low-light target acquisition and night vision.
Composite materials are used in the helicopter's construction to lighten its weight and improve its performance. The Apache platform is designed to be flexible and capable of incorporating new technologies, hence guaranteeing its continued usefulness. Hellfire anti-tank missiles, Hydra 70 rocket pods, and a 30mm M230 chain gun are among the weapons fitted to the AH-64.
Specifications
Engine and Gearbox
Two turboshaft engines, usually from the General Electric T700 series, power the AH-64 Apache helicopter. The thrust required for propulsion and maneuverability is supplied by these engines. The main rotor, tail rotor, and other essential helicopter parts receive power from the engines through the gearbox system. The gearbox system makes sure that the rotor systems run smoothly and effectively, which enables the Apache to reach its full performance potential in terms of lift, speed, and agility.
Performance
A cruising speed of about 254 km/h and a maximum speed of about 365 km/h are possible. With supplementary fuel tanks, the combat radius can reach up to 1,770 km, and the ferry range can reach up to 480 km without refueling. Over 20,000 feet (6,100 metres) of service ceiling for high-altitude operations. Its agility, manoeuvrability, and high level of pilot input response allow for efficient navigation across a variety of terrain types.
Features
Powerful offensive capabilities with its 30mm M230 Chain Gun, Hellfire anti-tank missiles, and Hydra 70 rocket pods. For efficient mission coordination, use a tandem cockpit arrangement with a pilot in the front and a co-pilot or gunner in the back. Target engagement of numerous targets at once is possible with the longbow radar system's precision target acquisition and tracking capabilities.
Safety
To guard against shrapnel, small arms fire, and other battlefield dangers, the cockpit and important parts are armored. In the case of a system breakdown, Apache is built with redundant systems to guarantee that essential operations may still be carried out. Fitted with Forward-Looking Infrared (FLIR) technology, which lowers the risk of accidents by enabling night vision and better situational awareness in low light.
Pros
- Firepower: Equipped with a 30mm chain cannon, Hydra rockets, and Hellfire missiles, it offers powerful and adaptable weaponry.
- Target Acquisition: The Longbow radar system allows for accurate tracking and acquisition of targets, facilitating the engagement of several targets at once.
- Communication Systems: State-of-the-art communication systems make it easier to coordinate with other aircraft and ground forces.
- Maintenance Complexity: More complicated maintenance procedures and downtime may result from today's sophisticated systems and technologies.
- Limited Passenger Capacity: The Apache was primarily built to accommodate a crew of two; hence, it has little room for more passengers.
- Size: The Apache's size may affect how it can be used in confined spaces or other restricted locations.
Variants
- AH-64A Apache: First produced in the early 1980s, this aircraft used the Longbow radar to detect targets and was capable of firing Hellfire missiles.
- AH-64D Apache Longbow: A revised version with notable enhancements, such as the Longbow radar system for improved target engagement and detection capabilities.
- AH-64E Apache Guardian: The most recent and sophisticated model, with enhanced network connectivity, stronger avionics, and better engines. Its design prioritises ease of maintenance and enhanced interoperability with other systems.
